Processor

Intel Core i3-1005G1 (2C / 4T, 1.2 / 3.4GHz, 4MB)

Graphics

Integrated Intel UHD Graphics

Chipset

Intel SoC Platform

Memory

1x 8GB SO-DIMM DDR4-2666

Memory Slots

One DDR4 SO-DIMM slot

Max Memory

Up to 32GB DDR4-2666

Storage

256GB SSD M.2 2242 PCIe 3.0x2 NVMe

Storage Support

Up to two drives, 1x 2.5" HDD + 1x M.2 2242/2280 SSD • 2.5" HDD up to 2TB • M.2 2280 SSD up to 1TB • M.2 2242 SSD up to 512GB • Optional Intel Optane Memory integrated with SSD, M.2

Card Reader

4-in-1 Card Reader

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek ALC3287 codec

Speakers

Stereo speakers, 2W x2, Dolby Audio

Camera

720p with ThinkShutter

Microphone

2x, Array

Battery

Integrated 45Wh

Max Battery Life

MobileMark 2014: 9 hr (45Wh)

Power Adapter

65W Slim Tip

DESIGN

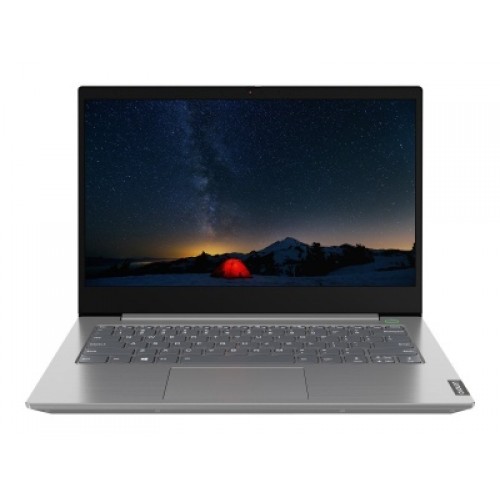

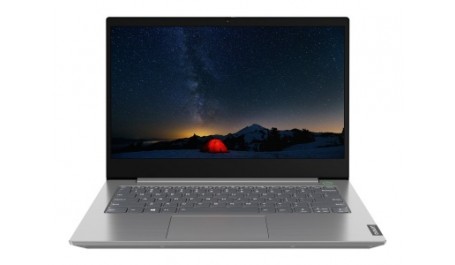

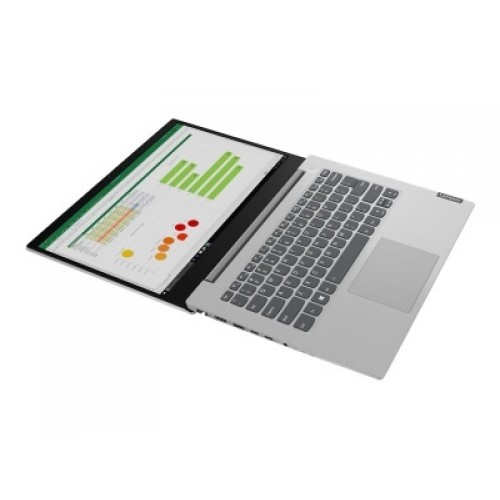

Display

14" FHD (1920x1080) IPS 250nits Anti-glare

Touchscreen

None

Keyboard

Backlit, English (EU)

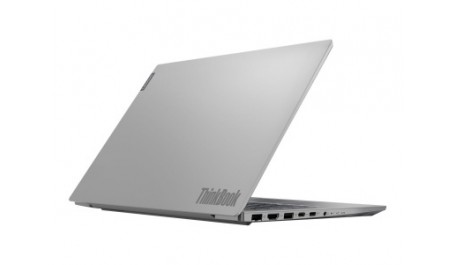

Case Color

Mineral Grey

Surface Treatment

Anodizing sandblasting

Case Material

Aluminium

Dimensions (WxDxH)

326 x 230 x 17.9 mm (12.8 x 9.06 x 0.70 inches)

Weight

1.5 kg (3.3 lbs)

SOFTWARE

Operating System

DOS

Bundled Software

Office Trial

CONNECTIVITY

Ethernet

100/1000M

WLAN + Bluetooth

11ax, 2x2 + BT5.0

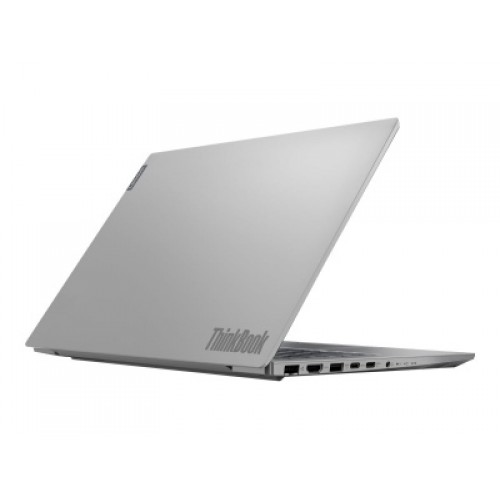

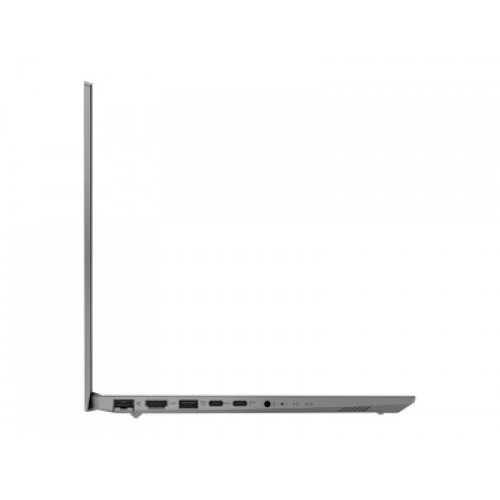

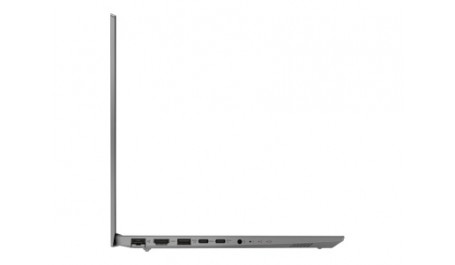

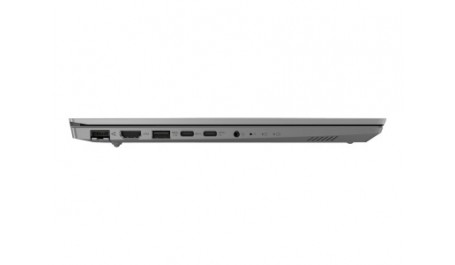

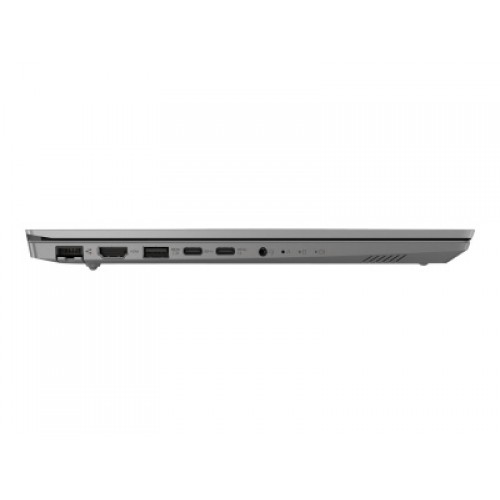

Standard Ports

·       1x USB-C 3.1 Gen 2 (support data transfer, Power Delivery and DisplayPort)

·       1x power connector

·       1x card reader

·       1x Ethernet (RJ-45)

·       1x USB-C 3.1 Gen 1

·       1x USB 3.1 Gen 1 (Always On)

·       1x HDMI 1.4b

·       1x headphone / microphone combo jack (3.5mm)

·       1x USB 3.1 Gen 1

·       1x USB 2.0

SECURITY & PRIVACY

Security Chip

Firmware TPM 2.0

Fingerprint Reader

Touch Style

Other Security

ThinkShutter camera cover

SERVICE

Base Warranty

1-year, Depot

Included Upgrade

None

CERTIFICATIONS

Green Certifications

·       ENERGY STAR 8.0

·       EPEAT Silver

·       ErP Lot 3

·       RoHS compliant

Mil-Spec Test

MIL-STD-810G military test passed
